Off-Grid CCTV Solar Power System Kits for Cameras & WiFi Routers

4 standard models from 80W to 240W. Every unit is a complete CCTV solar power system kit: solar panel, 18650 lithium battery, charge controller and mounting bracket. One output voltage (DC 12V), fixed specs, consistent quality. Every kit is a self-contained solar power supply for CCTV cameras: panel and battery in one unit, a 12V DC output on a DC5521 plug, and nothing else needed at the camera end.

80W – 240W Panels DC 12V Output 18650 Ternary Li-ion MOQ 2 pcs

Pick by Load

Two Series, Sized by How Many Cameras You Power

You don’t need to understand volts and amp-hours first. Just count your cameras (and any router) and start from the right series.

SERIES M

For 2–3 Cameras

Dual-panel mainstream system that also carries a small WiFi router. The widely used configuration for farms and yards.

1 Model →

SERIES P

For 3–4 or 6–7 Cameras

Pro systems from 120W to 240W: standard bracket or heavy-duty triangle bracket, for highways, mining, remote towers and high-power routers.

3 Models →

M SERIES

Mainstream: 2–3 Cameras (+ Router)

Dual-panel standard-bracket system, the workhorse for farms, warehouses and perimeter jobs.

MAINSTREAM

YO-M8040

80W panel · 40Ah battery · DC 12V

Example load: 2–3 × mid-size PTZ cameras (5–10 W each) + router
2 panels (530×350×16 mm each)
Steel bracket 400×200 mm, 10.0 kg
4–5 days backup at ≈15 W reference load

80W Solar Power System for Camera →

P SERIES

Pro: 3–4 or 6–7 Cameras + High-Power Router

Pro-grade systems with standard or heavy-duty triangle brackets. Adjustable tilt.

PRO

YO-P12060

120W panel · 60Ah battery · DC 12V

Example load: 3–4 × mid-size PTZ cameras (5–10 W each) + router
3 panels (530×350×16 mm each)
Steel bracket, pole/wall mount, 16.0 kg
Extended backup for frequent rain seasons; duration depends on your load

120W Solar Power System for Camera →

PRO

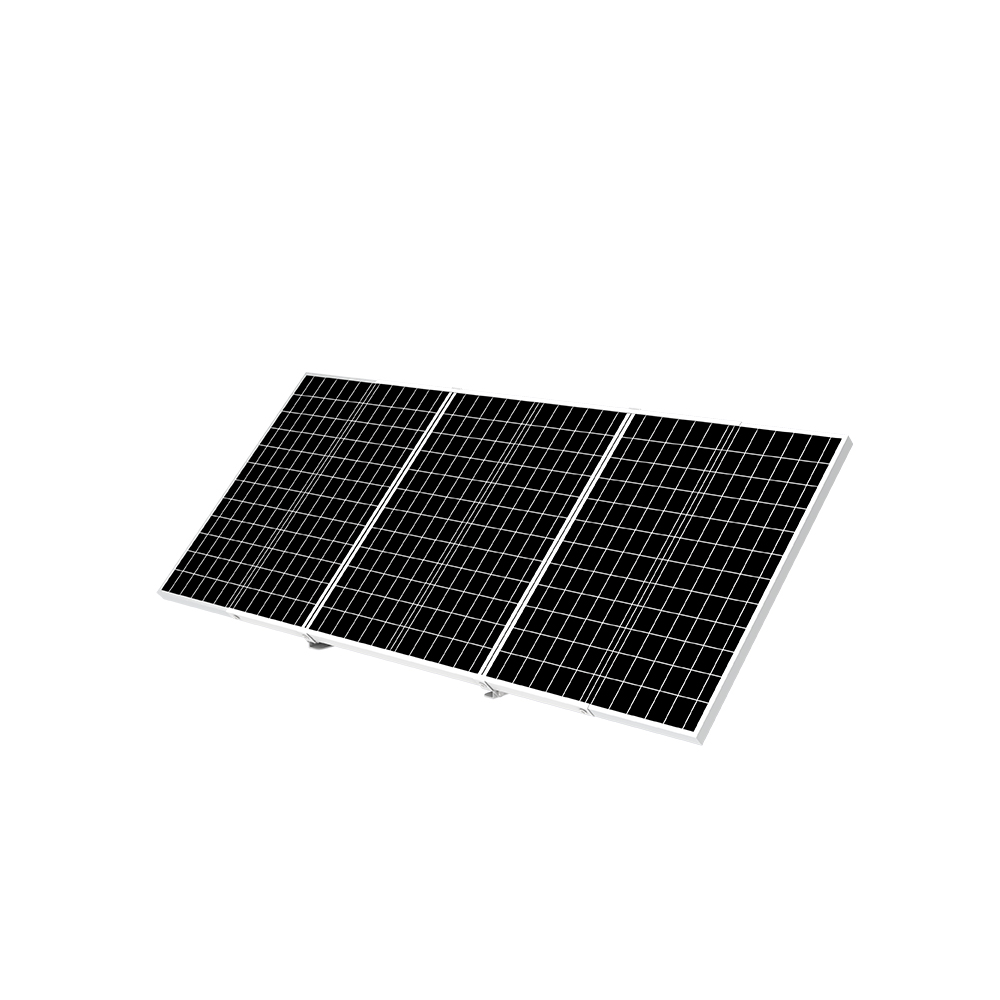

YO-P12060-T

120W panel · 60Ah battery · DC 12V

Example load: 3–4 × mid-size PTZ cameras (5–10 W each) + router
Triangle bracket for pole mounting
≈16.0 kg heavy-duty build
Extended backup for frequent rain seasons; duration depends on your load

Pole Mount Solar Power System for Camera →

FLAGSHIP

YO-P240120

240W panel · 120Ah battery · DC 12V

Example load: 6–7 cameras + high-power router
4 panels (680×440×20 mm each)
Heavy-duty frame, 42.0 kg
Extended backup for long rain seasons; duration depends on your load

240W Solar Power System for Camera →

Compare All

Full Specification Table

Same output voltage everywhere (DC 12V, max DC 16V); choose by panel wattage and battery capacity.

Model	Series	Panel	Battery	Panels (size)	Bracket	Weight	Rainy Autonomy	Typical load (≤ 5 A / 60 W)
YO-M8040	M Mainstream	80W	40Ah	2 × 530×350×16 mm	Steel 400×200×125	10.0 kg	4–5 days*	2–3 × mid-size PTZ cameras (5–10 W each) + router
YO-P12060	P Pro	120W	60Ah	3 × 530×350×16 mm	Steel 400×270×125 (pole/wall)	16.0 kg	Extended backup*	3–4 × mid-size PTZ cameras (5–10 W each) + router
YO-P12060-T	P Pro	120W	60Ah	3 × 530×350×16 mm	Triangle bracket (pole)	≈16.0 kg	Extended backup*	3–4 × mid-size PTZ cameras (5–10 W each) + router
YO-P240120 FLAGSHIP	P Pro	240W	120Ah	4 × 680×440×20 mm	Heavy-duty 440×270×810	42.0 kg	Extended backup*	6–7 × low-power PTZ cameras (≈5 W each) + high-power router

* Rainy autonomy figures are the manufacturer’s ratings for intermittent rain days with 2–3 h of weak-light charging per day at low average draw. The 4–5 day figure for YO-M8040 is the rating at a ≈15 W reference load (one mid-size PTZ camera plus one router). The 4–5 day figure for YO-M8040 is the rating at a ≈15 W reference load (one mid-size PTZ camera plus one router). They are not continuous-runtime figures: with a full continuous load, battery-only runtime is measured in hours, not days. Actual runtime depends on your total load, duty cycle and sunlight; more cameras or continuous recording shorten it. The load column shows an example configuration, not a fixed limit; recommended load depends on the actual power draw of your cameras and router; total continuous load must not exceed 60 W (5 A at DC 12V). Ask us for a free load check.

Common to All Models

General Specifications

Panel technology and battery protection are identical across the range; panel wattage, battery capacity and bracket type change from model to model.

Panel technology	Monocrystalline silicon, cell efficiency 22–24%, 5-busbar technology, 3.2 mm tempered glass, anodized aluminum frame
Panel power tolerance	0 to +3% (positive tolerance)
Battery chemistry	18650 ternary lithium (NCM), 3.7V cells; all series pass UN38.3 (sea / land freight compliant)
Battery protection	BMS: over-charge / over-discharge / over-current / short-circuit / cell balancing
Smart charging modes	3 geographic charging modes (North / Central / South)
40W panel electrical (STC)	Vmp 18V · Imp 2.22A · Voc 21.6V · Isc 2.44A, used in YO-M8040 / YO-P12060 / YO-P12060-T
Installation	Pole clamps (304 stainless steel, standard for 60–200 mm poles; 80–150 mm included) or wall mount; tilt ≈ local latitude, face south (northern hemisphere)
Packaging	One complete kit per carton: panels, battery box, controller, bracket, cables and mounting hardware; sea / land freight (battery exceeds 100Wh, so air freight is not available)
MOQ	2 pcs

Panel electrical figures (STC) apply to the 40W panel used in YO-M8040, YO-P12060 and YO-P12060-T. YO-P240120 uses 60W panels. Ask us for the full datasheet if you need panel-level data for that model.

Quick Answers

Common Questions About the Models

How do I know which model fits my cameras?

Count your cameras (and whether you also power a router), then check the load column in the table above. Every model outputs the same DC 12V; the difference is how many days it can run with no sun. Still unsure? Send us the camera model and count; we typically reply with a match within 24 hours.

Can one system power both my camera and a WiFi router?

Yes, routers that run on DC 12V are directly supported. A typical outdoor CPE router draws 6–12 W; we recommend YO-M8040 or above when a router is on the same system. Tell us the router wattage and we’ll size it properly.

What is the difference between YO-P12060 and YO-P12060-T?

Same power core (120W panels, 60Ah battery). The standard YO-P12060 mounts on a pole or wall with a steel bracket arm; the -T version uses a heavy-duty triangle bracket for pole mounting, stronger and more stable than the standard arm. Pick by installation site.

Is the battery replaceable later?

No. Systems use standard 18650 ternary lithium cells inside a sealed battery box, and the box is closed at the factory. Cells are not sold as a separate part and the box is not opened on site. Battery warranty is 2 years; past that, a system whose battery has reached the end of its life is replaced as a whole unit, quoted against the same model. Ordering basics, freight modes and the documents that travel with the goods are set out under moq solar power system camera.

Where can I buy a CCTV solar power system in small quantity?

Directly from us, from 2 pcs upward, with no distributor in between. If you want to buy a cctv solar power system to test on one site, take a single unit of the model that matches your load, run it through a full week including the worst weather you expect, and then order the rest of the fleet. The sizing guide tells you which model that is.
